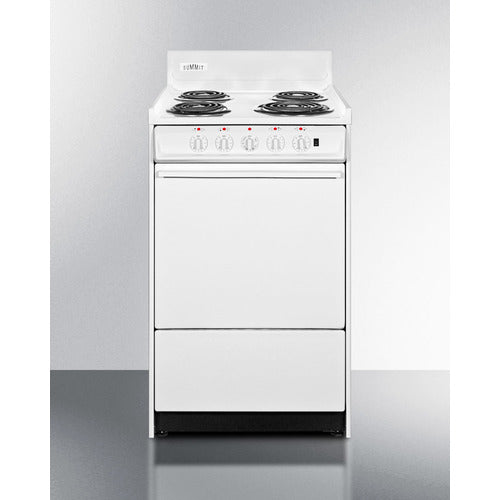

Summit 20" Wide Electric Coil Top Range

Features:

Made in the USA: Designed and constructed domestically for long-lasting durability.

Advanced Safety Features: Includes low wattage elements, individual indicator lights, and additional features for safety in senior living, HUD kitchens, and group facilities.

Slim 20-Inch Width: This apartment-sized range offers all the functionality you need in a smaller footprint, perfect for tight spaces.

24-Inch Depth: Shallower fit ideal for L-shaped and galley kitchens where space is limited.

Four Coil Elements: Equipped with three standard 6" elements and one large 8" element for versatile cooking.

Safety Burners with Low Wattage Outputs: Designed to comply with the latest UL safety standards, the elements heat slowly but steadily without cycling off, offering more control.

Chrome Drip Pans: Removable chrome pans make cleaning easier and more convenient.

Individual Indicator Lights: Control panel includes five indicator lights to show when each cooking element is in use.

Cord Included: Pre-installed 3-prong 40-amp range cord for easy setup.

Upfront Controls: All knobs are conveniently located in the front, allowing users to adjust heat without reaching over hot burners.

Push-to-Turn Knobs: Burner knobs require a small amount of force to turn on, providing added protection against accidents. The oven knob is not push-to-turn.

Recessed Oven Door: Smart design limits the depth and helps protect adjacent cabinets from damage.

Porcelain and Steel Construction: Built to withstand daily use with durable materials that stand up to wear and tear.

Waist-High Broiler: Located inside the oven for easy access, eliminating the need to transfer items to a lower compartment.

Oven Light: Includes an exterior on/off rocker switch for controlling the interior oven light.

Adjustable Oven Racks: Two wire racks with safety brakes offer several glide positions to accommodate a variety of dish sizes.

Storage Compartment: The bottom drop-down compartment is perfect for storing cookware, maximizing your kitchen space.

Removable Oven Door and Range Top: Both the porcelain oven door and range top are removable for easy cleaning.

Broiler Tray Included: A two-piece porcelain broiler tray with a grease well is included for convenience.

Anti-Tip Bracket: For added safety, an anti-tip bracket is included to prevent the range from tipping.

ADA Compliant Design: Upfront controls and easy-to-operate knobs meet the accessibility requirements of the Americans with Disabilities Act (ADA).

Other Specifications:

Dimensions (Inches):

• Width: 20"
• Height: 40"
• Depth: 24"

Oven Capacity:

• 2.46 cu.ft.

Cooktop Surface:

• Porcelain

Element Type:

• Coil

Number of Elements:

• 4 (3 x 6" / 1 x 8")

Wattage:

• 6" Elements: 675W each
• 8" Element: 950W

Controls:

• Dial (Burner & Oven)

Safety Features:

• UL Approved
• CSA Certified

Other:

• Oven Light, Backguard, Manual Cleaning

Weight:

• 140 lbs (64 kg)

Warranty:

• 1 Year (Parts & Labor)
