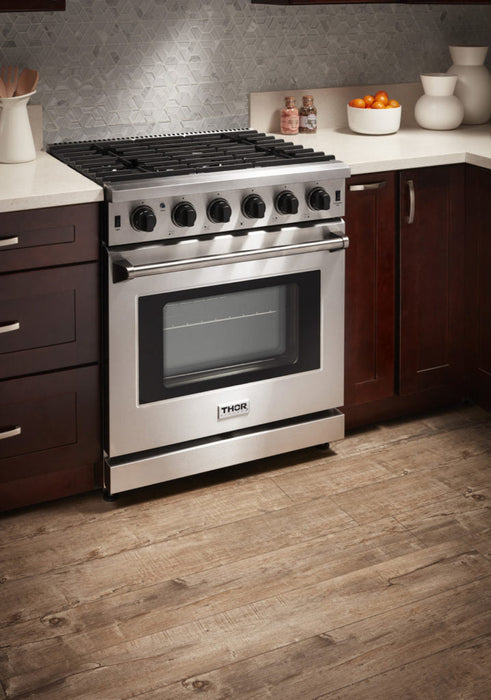

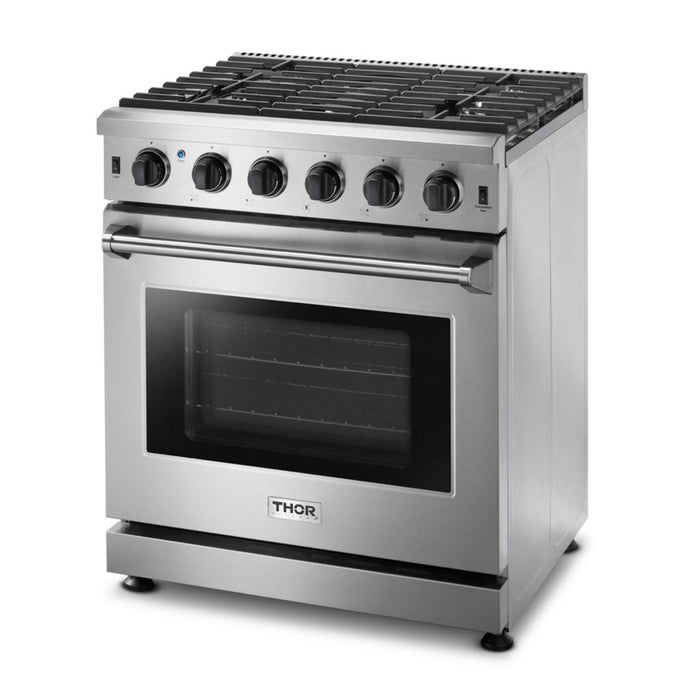

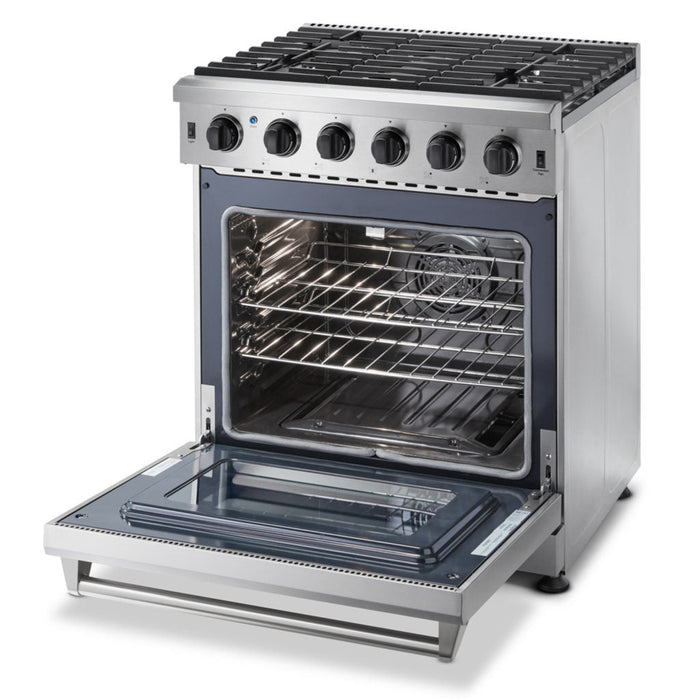

Thor Kitchen 30 Inch Freestanding Gas Range in Stainless Steel

Features and Benefits:

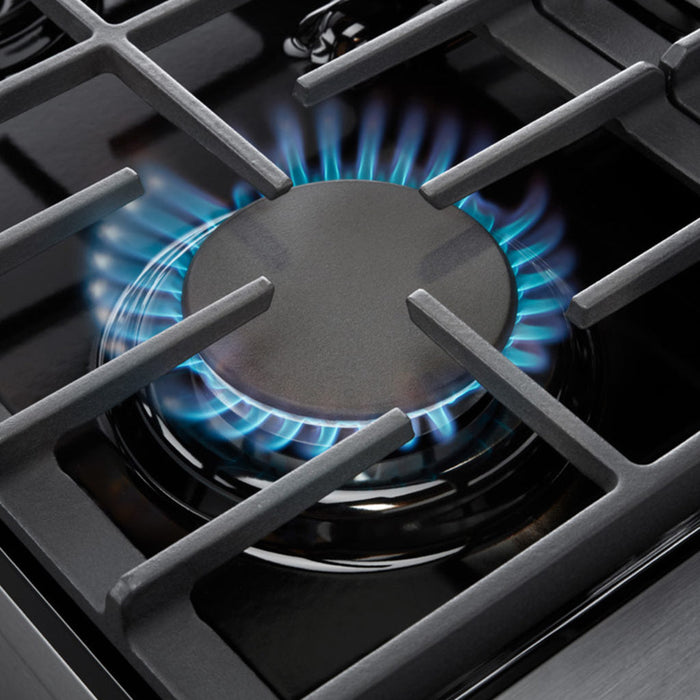

1. High-Powered BTU Burners:

   • The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes.

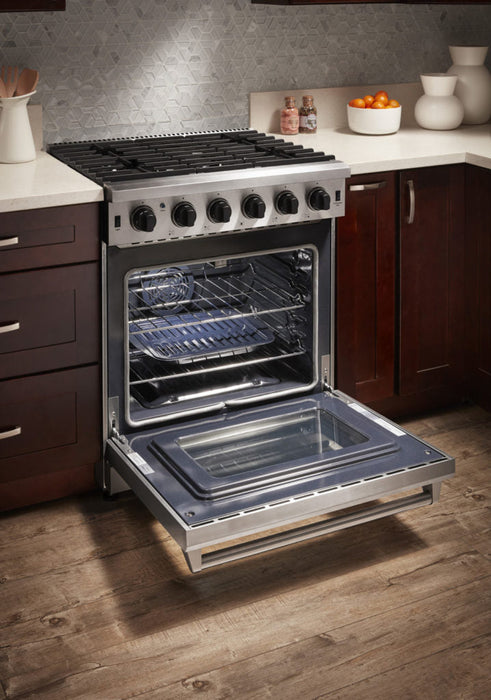

2. Large Oven Capacity:

   • A 4.55 cu. ft. oven capacity can accommodate multiple dishes at a time.

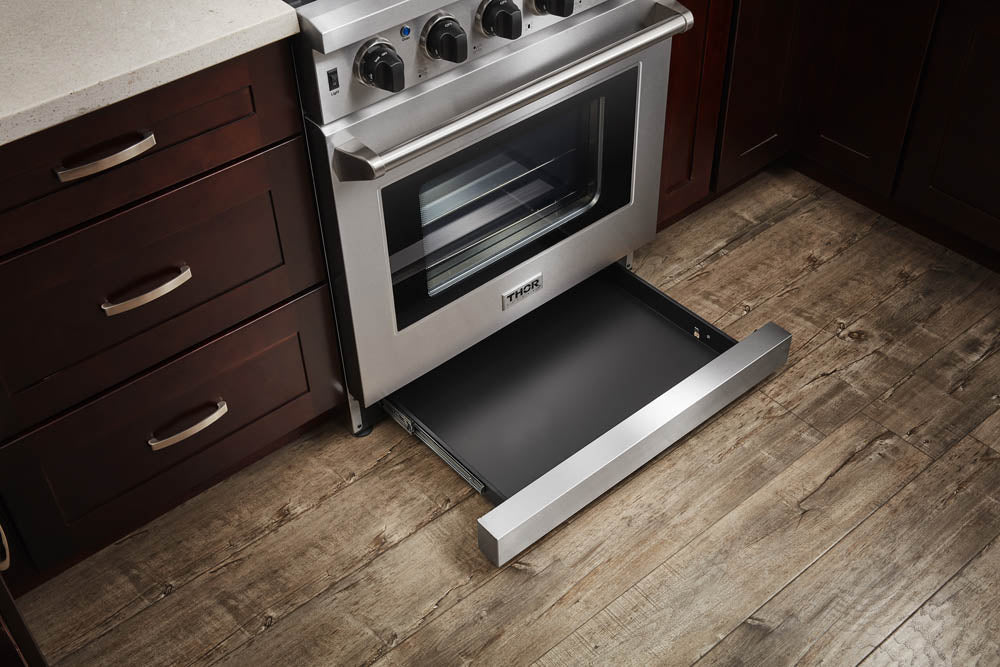

3. Storage Space:

   • A storage drawer provides additional storage space for cooking trays and other kitchen utensils.

4. Convection Fan:

   • A commercial convection fan provides controlled heat distribution for fast and efficient cooking.

5. Even Heat Broiler:

   • A reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices.

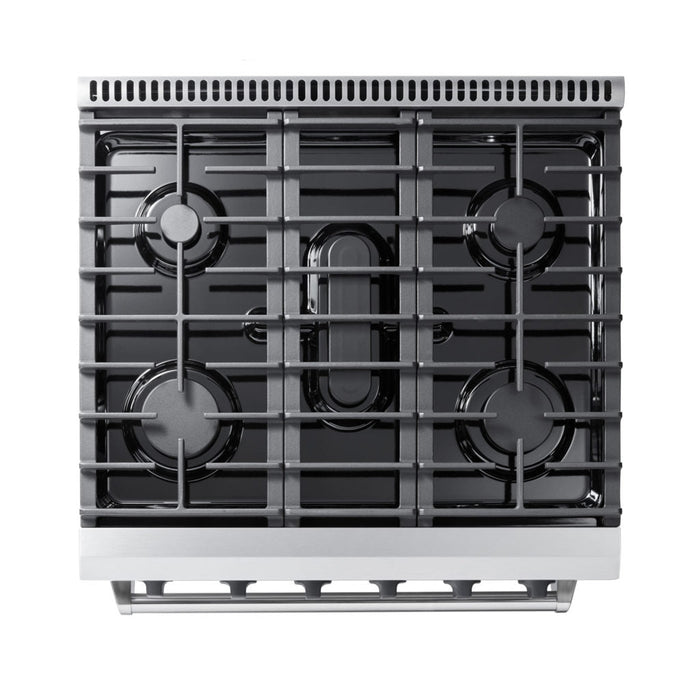

6. Continuous Cast-Iron Grates:

   • Heavy-duty continuous cast-iron cooking grates that can handle any size cookware.

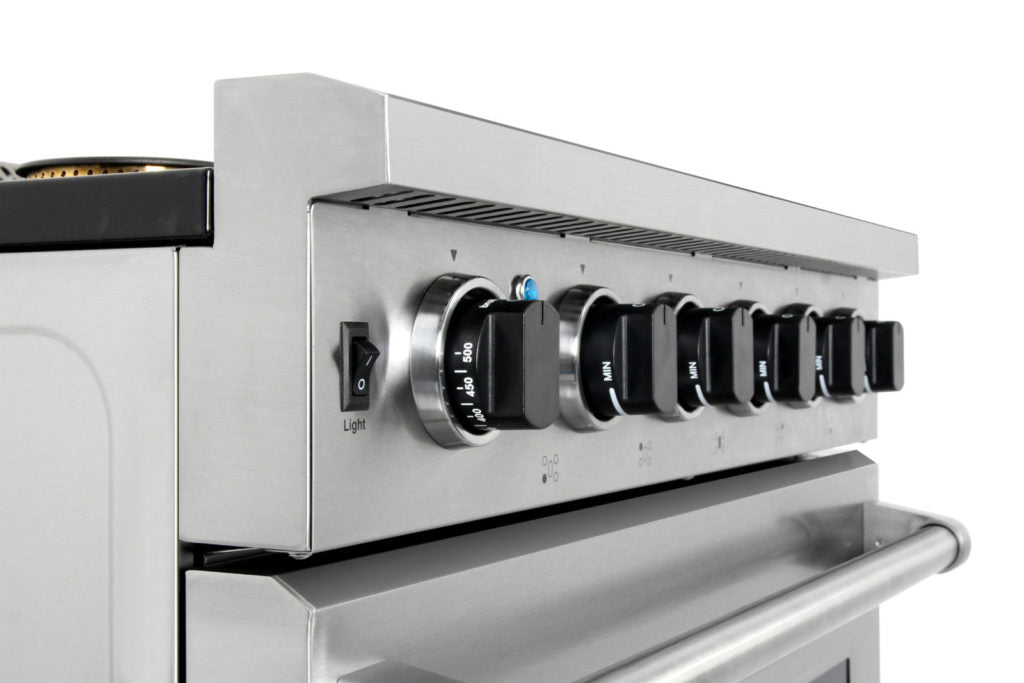

7. Professional Knobs:

   • Black burner control knobs add style to the bold range design.

8. Porcelain Spill Tray:

   • A single-piece black porcelain spill tray catches the mess and makes cleanup easy.

9. Porcelain Interior:

   • The gray porcelain oven interior adds a stylish touch and is easy to clean.

Technical Details:

• Fuel Type: Natural Gas / LP Convertible
• Electrical Requirements: 120V
• Circuit Breaker (A): 15 or 20A
• Frequency (Hz): 60 Hz

Burner Performance:

• Total Burners: 5
  • [1] Front Left (Single): 18,000 BTU
  • [2] Front Right (Single): 8,000 BTU
  • [3] Rear Left (Single): 4,000 BTU
  • [4] Rear Right (Single): 6,000 BTU

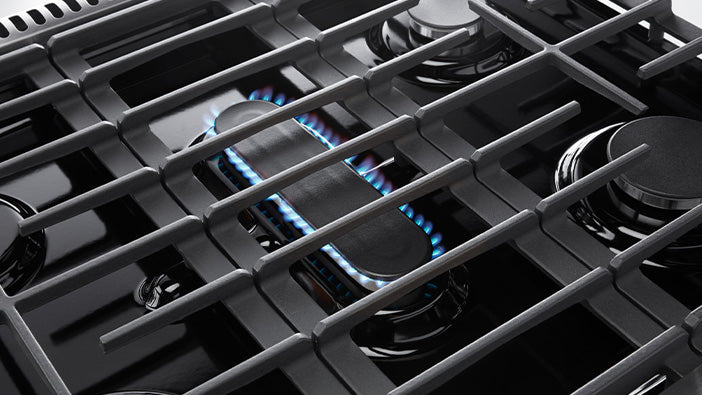

  • [5] Middle (Oval): 9,000 BTU
  • Tube Broil burner: 10,000 BTU
  • U-shape burner (30” Oven): 18,500 BTU

Accessories (not included):

• Liquid Propane Gas Conversion Kit: LPKLRG3001U
• Wok Ring: WK01
• Cast Iron Reversible Griddle: RG1022

Product Dimensions:

• Product Width: 30”
• Product height (from bottom to top of back splash): 36 5/16”- 37 5/16”
• Product height (from bottom to top of side panel): 35 5/8”-36 5/8”
• Product depth (from back panel to bullnose): 28 5/16”
• Product depth (from back panel to control board): 27 3/4”
• Product depth (from back panel to side panel front): 24 3/4”
• Depth of control panel (minimum): 2 1/4”
• Depth of control panel (bullnose): 3 9/16”
• Adjustable Legs: Not to Exceed 1”

Required Cutout Size:

• 30 1/8” x 24 3/4” x 35 5/8 (+1”)
